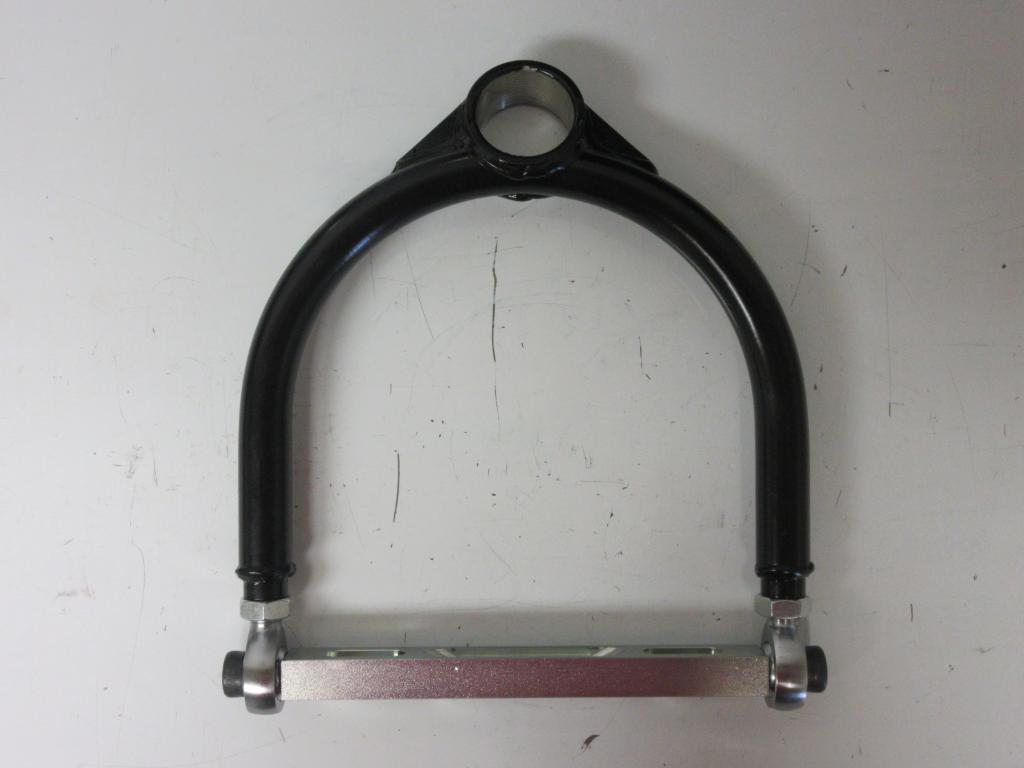

Late Model Upper Control Arm

9900-80 – 8.0″, Complete Welded A-Frame
9900-85 – 8.5″, Complete Welded A-Frame
9900-90 – 9.0″, Complete Welded A-Frame
9900-95 – 9.5″, Complete Welded A-Frame
9900-100 – 10.0″, Complete Welded A-Frame
9900-105 – 10.5″, Complete Welded A-Frame
9900-110 – 11.0″, Complete Welded A-Frame
9900-115 – 11.5″, Complete Welded A-Frame
9900-120 – 12.0″, Complete Welded A-Frame
9900-125 – 12.5″, Complete Welded A-Frame

Compare
Category:

Description

One piece U-tube with outboard mounted ball joint provides maximum spring & shock clearance.
Cross shafts fit 6″ on center mounts, can also be straddle mounted.
Lengths from 8″ to 12.5″, Centered .625″ or 1.25″ ball joint offsets available, Straight, 10, 20 or 25 degree ball joint angles.
Slotted Steel Cross Shaft (p/n 9935) for caster adjustment.
Optional 9-piece Key set (p/n 9936) for locking caster adjustment.
Rod end bearings provide bind-free operation & approximate .75″ adjustment.
8.75″ between legs.
9900-80 – 8.0″, Complete Welded A-Frame
9900-85 – 8.5″, Complete Welded A-Frame
9900-90 – 9.0″, Complete Welded A-Frame
9900-95 – 9.5″, Complete Welded A-Frame
9900-100 – 10.0″, Complete Welded A-Frame
9900-105 – 10.5″, Complete Welded A-Frame
9900-110 – 11.0″, Complete Welded A-Frame
9900-115 – 11.5″, Complete Welded A-Frame
9900-120 – 12.0″, Complete Welded A-Frame
9900-125 – 12.5″, Complete Welded A-Frame
