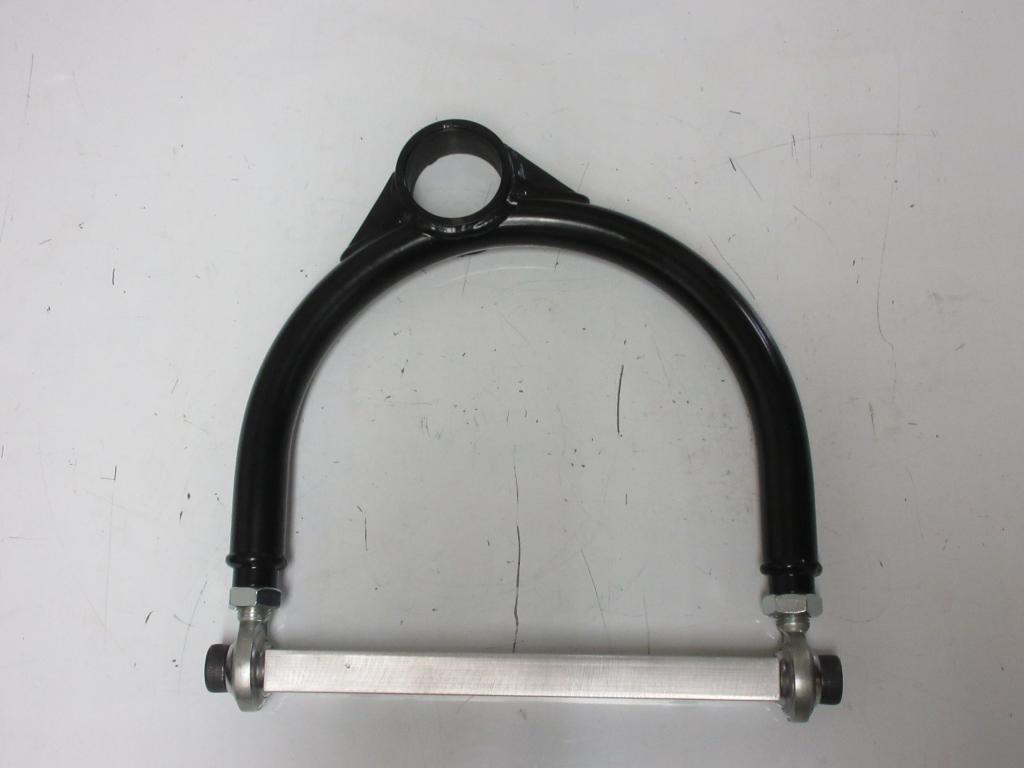

Dirt Modified Upper Control Arm

9700-80 – 8.0″, Offset Upper Control Arm
9700-85 – 8.5″, Offset Upper Control Arm
9700-90 – 9.0″, Offset Upper Control Arm
9700-95 – 9.5″, Offset Upper Control Arm
9700-100 – 10.0″, Offset Upper Control Arm
9700-105 – 10.5″, Offset Upper Control Arm
9700-110 – 11.0″, Offset Upper Control Arm
9700-115 – 11.5″, Offset Upper Control Arm
9700-120 – 12.0″, Offset Upper Control Arm

Compare
Category:

Description

One piece U-tube with outboard mounted ball joint provides maximum spring & shock clearance.
Cross shafts fit 6″ on center mounts, can also be straddle mounted.
Lengths from 8″ to 12.5″, Centered .625″ or 1.25″ ball joint offsets available, Straight, 10, 20 or 25 degree ball joint angles.
Solid Aluminum Cross Shaft, Optional Slotted Aluminum I-Beam Cross Shaft.
Uses Economy Rod End Bearings for bind-free operation & approx. 75″ adjustment.
8.75″ between legs.
9700-80 – 8.0″, Offset Upper Control Arm
9700-85 – 8.5″, Offset Upper Control Arm
9700-90 – 9.0″, Offset Upper Control Arm
9700-95 – 9.5″, Offset Upper Control Arm
9700-100 – 10.0″, Offset Upper Control Arm
9700-105 – 10.5″, Offset Upper Control Arm
9700-110 – 11.0″, Offset Upper Control Arm
9700-115 – 11.5″, Offset Upper Control Arm
9700-120 – 12.0″, Offset Upper Control Arm
